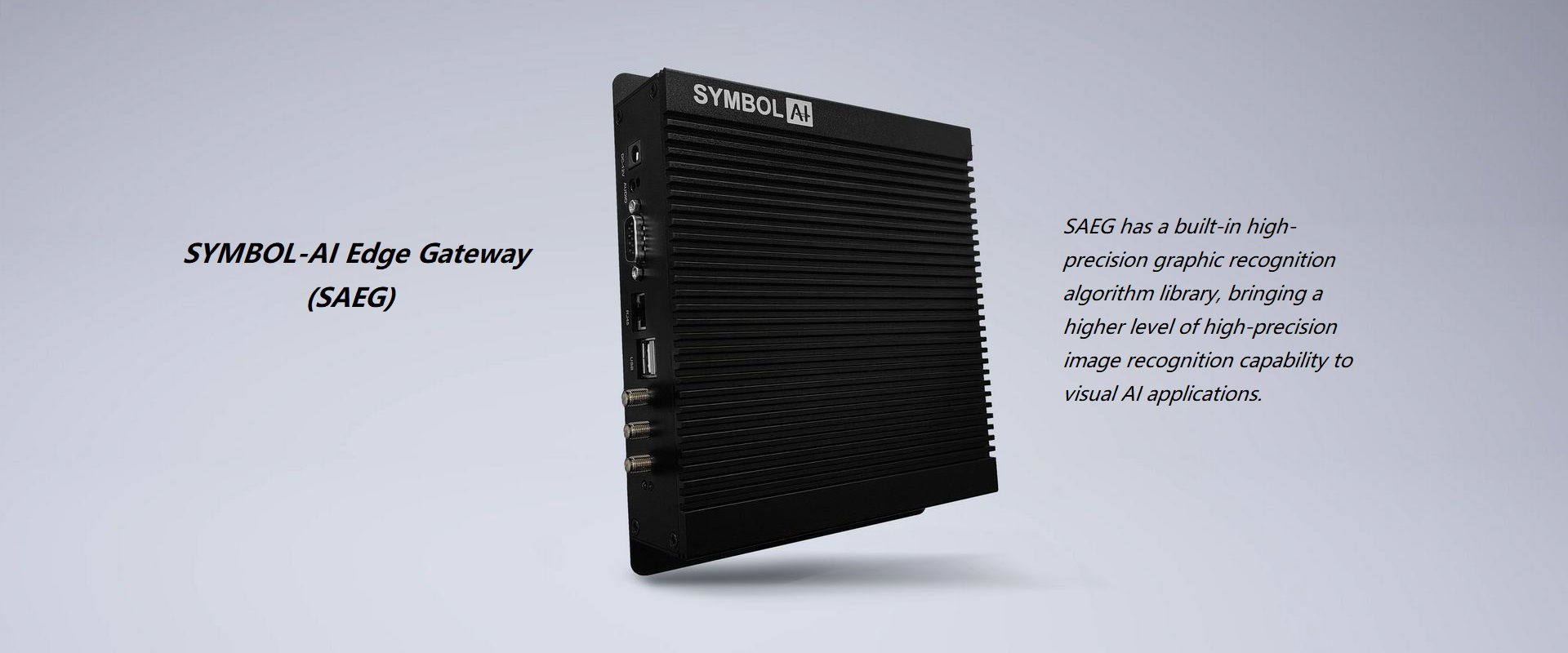

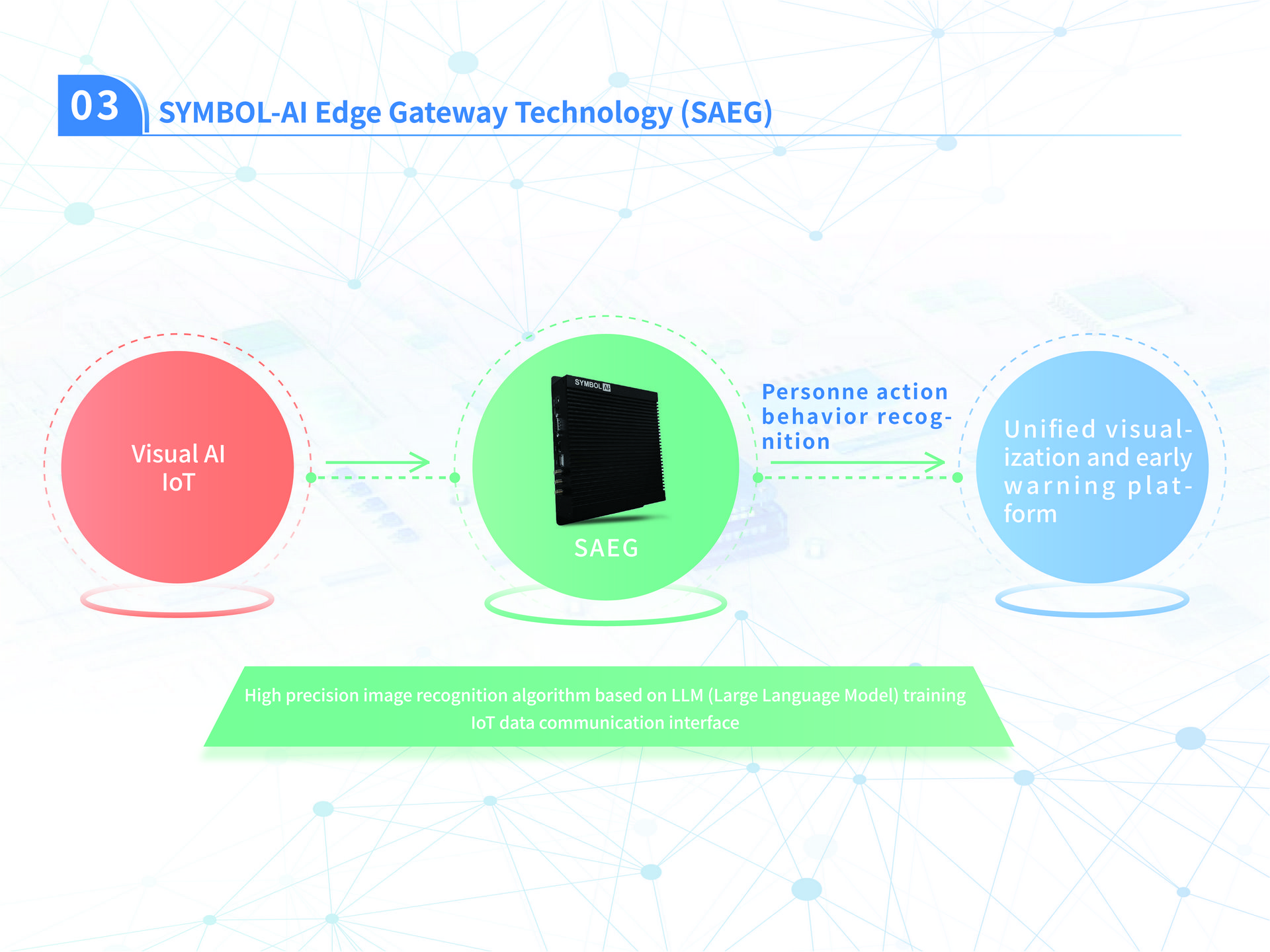

SAEG has a built-in high-precision graphic recognition algorithm library, which uses a device with a built-in visual AI accelerator that can process image data from multiple cameras, bringing a higher level of high-precision image recognition capability to visual AI applications.
Core components
1) Eight core 64 bit (4xCortex-A76+4xCortex-A55), advanced 8nm technology, maximum clock speed of 2.4GHz
2) ARM Mali-G610 MP4 quad core GPU supports OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450GFLOPS
3) NPU computing power up to 6 TOPS, supporting INT4/INT8/INT16 mixed operations
4) 4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (up to 32GB)
5) EMMC 16 (default)/32G/64G/128G
6) Supports up to 128GB TF card expansion
Audio interface
1) 1-channel audio dual channel output (analog signal output)
2) 1-channel microphone mono input (analog signal input)
Network support
1) 1 standard RJ45 interface, 10/100/1000M adaptive Ethernet
2) Onboard WIFI/BT module, supports WiFi 2.4GHz (5G WiFi optional), supports -802.11a/b/g/n/ac protocol
3) Supports Bluetooth 5.0 (BLE), Bluetooth optional
4) 1 built-in MINI PCI-E socket, expandable to connect 3G/4G modules

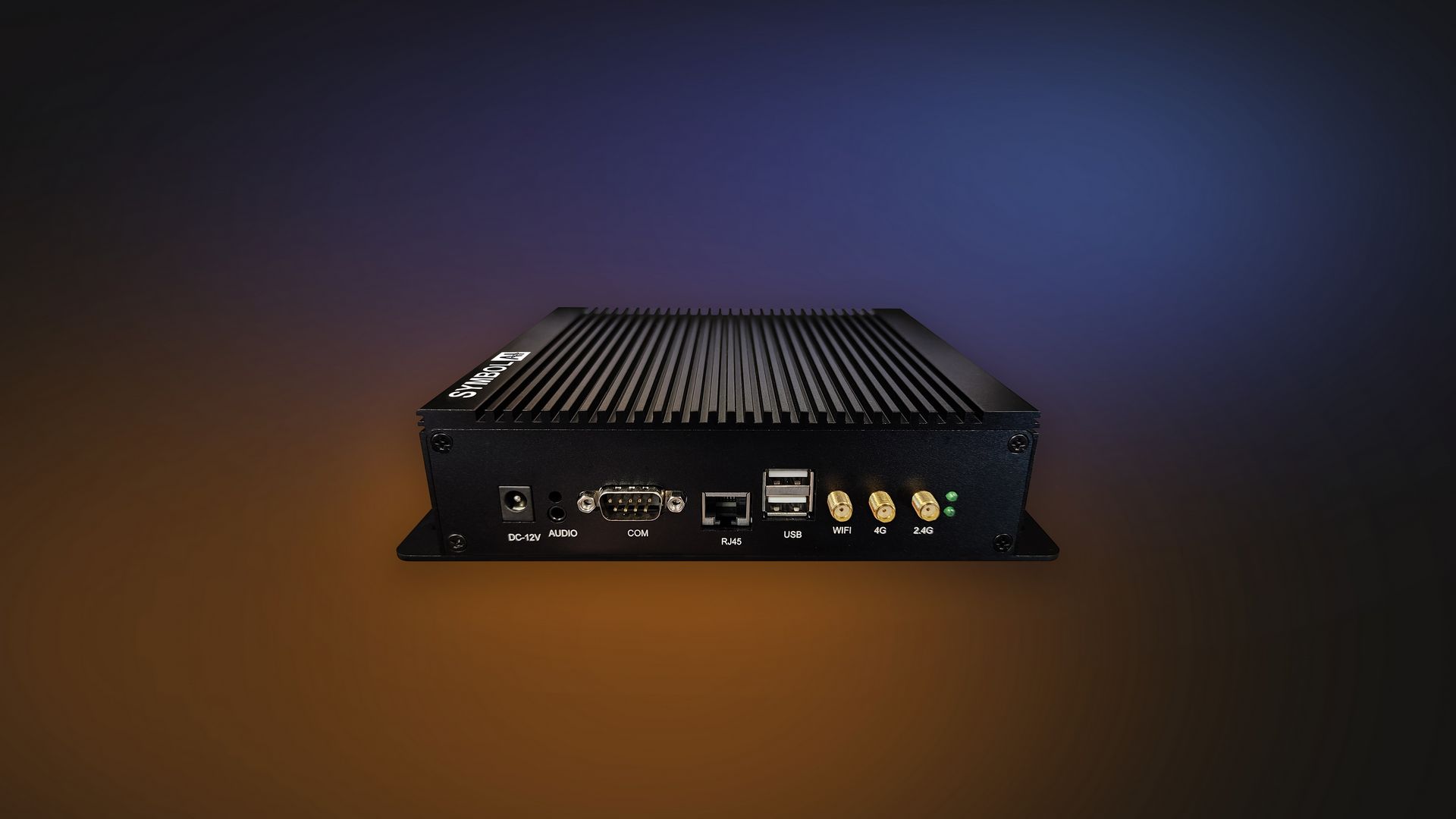

Basic interface
1) 2 USB Host interfaces for external high-definition USB cameras, USB drives, keyboards, mice, and other devices
2) 2 serial ports, including 1 RS232 serial port and 1 RS485 serial port
3) Onboard RTC: Supports real-time clock, powered by 1220 button battery
4) Power socket: 1 external DC12V input socket (DC-5.5 * 2.5mm female socket)
5) Suggested power specifications: 12V 2-5A
Work environment
1) Working temperature: 0 ℃~70 ℃, recommended 5 ℃~35 ℃
2) Working humidity: 10% to 90%, no condensation
3) Storage temperature: -30 ℃~75 ℃, recommended for storage at room temperature

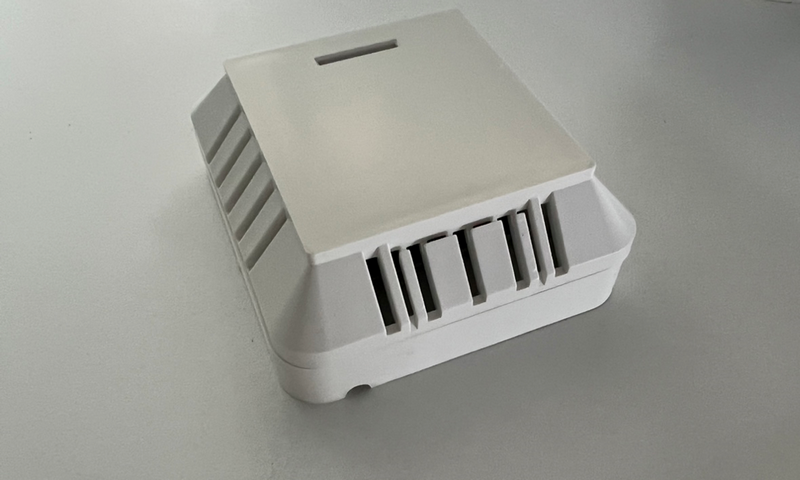

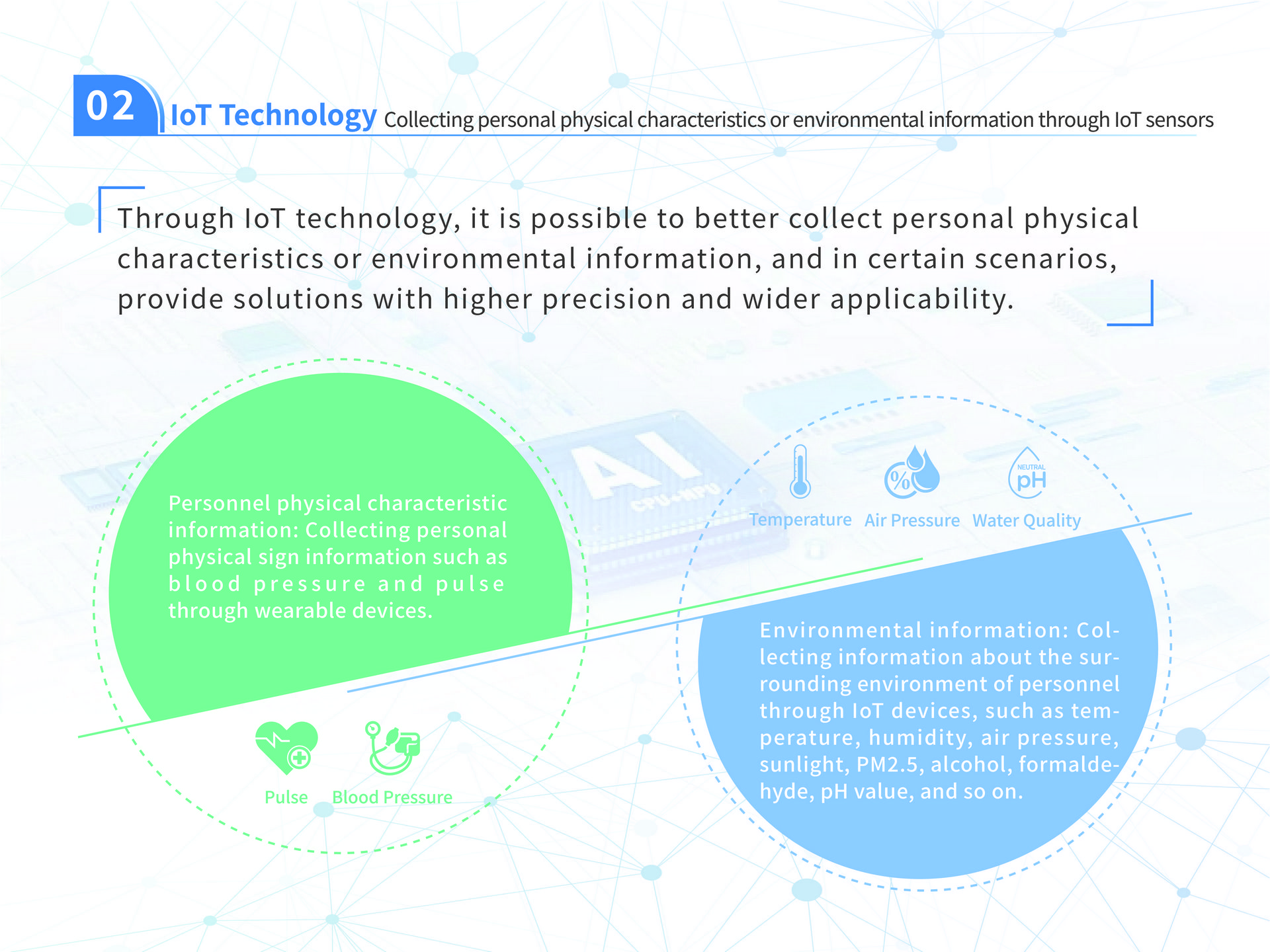

Integrating visual AI technology with the IoT technology can better achieve environmental information collection and human action behavior recognition. Furthermore, it can provide more precise and widely applicable solutions in certain scenarios.
No | Category | Scale | Data collection error | Precision |
1 |
Temperature |
-20°C – 60°C |
±0.2°C（Max ±0.4°C） |
0.1°C |
2 |
Humidity |
0% ~100% RH |
±2%（Max ±3%） |
0.5% RH |
3 |
Illumination |
0~60000Lux（Show from L0 to L5） |
- |
- |
4 |
CO2 |
400~5000 ppm |
0°C-50°C ±（30 ppm+3 %） |
1 ppm |
5 |
PM2.5 |
- |
0~100(±10 μg/m3)；100~1000(±10 %) |
- |
6 |
PM10 |
- |
0~100(±10 μg/m3)；100~1000(±10 %) |
- |
7 |
Formaldehyde |
0 ~ 1.25 mg/m3 |
±10 % |
0.01 mg/m3 |
8 |
TVOC |
1.00~5.00（IAQ Level） |
±1 |
0.01 |
9 |
Atmospheric pressure |
260 ~ 1260 hPa |
±0.5 hPa |
0.1 hPa |
10 |
Gas mass flow rate |
2-100% of F.S |
± 1.5% of F.S |
- |
11 |
Electromagnetic flux |
0.3-15m/s |
± 0.5% |
- |
12 |
Hypersonic flow |
DN65-400mm |
- |
- |
